China five axis CNC machine sold to Russia，CNC 5 axis Processing Center Router Machine

China five axis CNC machine sold to Russia，CNC 5 axis Processing Center Router Machine，

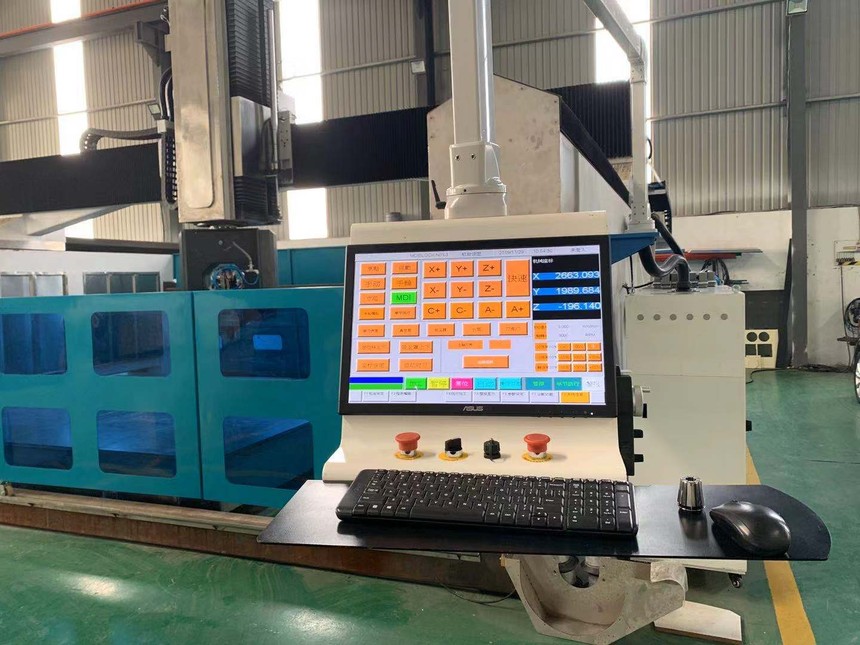

Chinese manufacturer of CNC five axis machining center, detail display of CNC five axis machine，

Contact number：+86-15618857188，E-mail address：rscncrouter@gmail.com

webwxgetmsgimg (12).jpg

webwxgetmsgimg (13).jpg

webwxgetmsgimg (14).jpg

webwxgetmsgimg (15).jpg

webwxgetmsgimg (16).jpg

webwxgetmsgimg (17).jpg

Because of the high price for 5 axis system, we choose wordwide good brand system for this machine, 5 axis moving Axis. Supply the post, customers will be easy to update, we have suitable high price version, but if customers can do all by yourself, this is a good machine to run.

Series	RECOJI2500
Travelling Size	286035601000mm
Working Size	25003000850mm
Table size	3250*5250mm
Transmission	X/Y rack and pinion drive,Z ball screw drive, A and B axis with robot gears
A and B axis moving range	A and B: -120 degree to +120 degress
Motion Parts	All axes with linear guides
Table structure	Aluninum T slot table
Spindle Power	3.7;5.5;9KW (Option: customized by customers) Italy INTEGRATED 5axis head
Spindle speed	24000 r/min
Travelling Speed	60m/min
Working speed	35m/min
Tool	ER
Driving system	Japanese AC servo
Voltage	AC380V/3PH/50HZ (Option: customized by customers)
Controller	Syntec 5axis system with RTCP

webwxgetmsgimg (1).jpg
